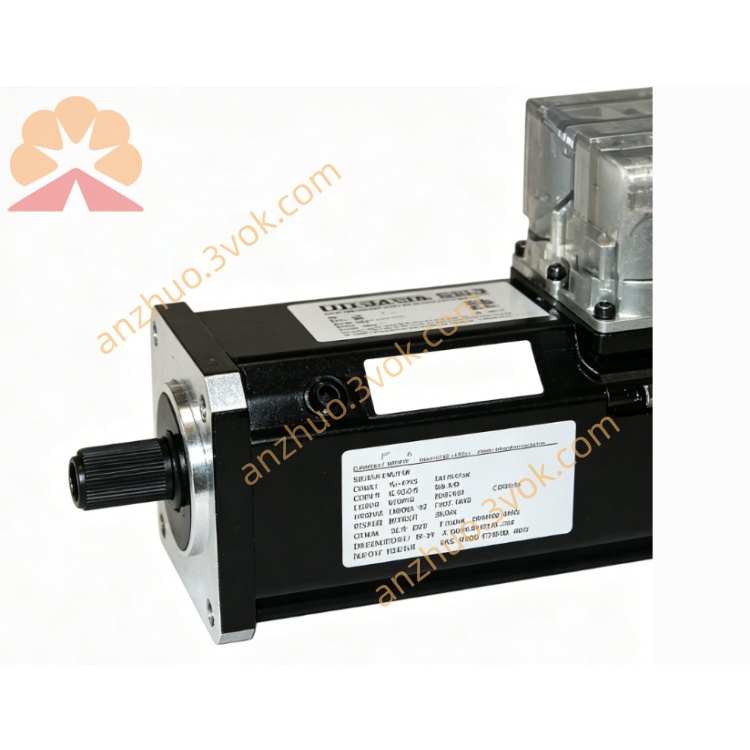

AKM22C-ANBNGB00

Synchronous Servo Motor – English Instruction Manual

1. GENERAL DESCRIPTION

2. MODEL NUMBER DEFINITION

• AKM: Kollmorgen AKM servo motor series

• 22: Frame size 2 (58×58 mm IEC flange), medium stack length 2

• C: Winding type C (230 VAC / 320–640 VDC max bus)

• A: Standard mounting (IM B5, flange‑mounted)

• N: Smooth shaft, no keyway

• B: 24 VDC holding brake (spring‑applied)

• N: Standard shaft seal (IP65)

• G: Digital encoder feedback (ComCoder, 2000 ppr)

• B: Dual rotatable M23 connectors (power + feedback)

• 00: No special modifications

3. TECHNICAL SPECIFICATIONS

Electrical Data

• Rated power: 0.57 kW (0.76 HP) @ 640 VDC bus

• Rated torque: 0.68 Nm (continuous)

• Stall torque: 0.84 Nm (peak)

• Rated current: 1.39 Arms (continuous, 100°C winding ΔT)

• Max speed: 8,000 rpm

• Winding resistance: 19.98 Ω (line‑to‑line @ 25°C)

• Insulation class: F (155°C)

• Voltage range: 230 VAC / 320–640 VDC max bus

Mechanical Data

• Flange: 58×58 mm IEC (tolerance N, NEMA 23 equivalent)

• Shaft: 20 mm diameter, smooth (no keyway)

• Protection class: IP65 (dust‑tight, splash‑proof)

• Vibration class: N (DIN EN 60034‑14)

• Brake: 24 VDC holding brake, spring‑applied, 0.8 Nm holding torque

• Feedback: ComCoder digital encoder, 2000 ppr, Hall‑effect commutation

• Connectors: Dual M23, rotatable (90° steps), power + feedback

• Weight: approx. 1.8 kg

• Ambient temperature: 0 °C to +40 °C (operation)

• Humidity: 95% rel. humidity, non‑condensing

4. KEY FEATURES

• Medium inertia, high dynamic response: Balanced for acceleration and smoothness.

• High torque density: Compact 58 mm flange with 0.68 Nm continuous torque.

• ComCoder encoder: 2000 ppr + Hall signals; no battery, high noise immunity.

• Integrated 24 VDC brake: Safe holding for vertical axes (spring‑applied).

• IP65 protection: Suitable for dust/wet industrial environments.

• Brushless design: Low maintenance, long service life.

• Thermistor protection: PTC thermistors in stator windings for overheat protection.

5. APPLICATIONS

• High‑dynamic positioning systems

• Packaging, printing, textile machinery

• Small CNC machines, robotics, pick‑and‑place units

• Vertical motion axes requiring holding brake

• 230 VAC / 320–640 VDC industrial automation systems

6. COMPATIBLE DRIVES

• Kollmorgen AKD / AKD2G series servo drives (230 VAC / 640 VDC variants).

7. INSTALLATION & WIRING (SUMMARY)

Mounting

• Use a clean, flat, rigid surface.

• Secure with 4×M5 screws; torque to 4.5–5 Nm.

• Align shaft coupling to avoid radial/axial overloads.

Wiring

• Power: Shielded 3‑phase cable to M23 power connector; ground shield at drive end.

• Feedback: ComCoder cable to M23 encoder connector; no battery required.

• Brake: 24 VDC ±10%; apply voltage to release brake; wire for safe vertical loads.

• EMC: Separate power/feedback cables; use shielded cables throughout.

8. MAINTENANCE

• Bearings: Lubricated for life; no re‑greasing needed.

• Seals: Inspect periodically to maintain IP65 rating.

• Connections: Check for tightness/corrosion; keep connectors dry.

• Diagnostics: Use Kollmorgen WorkBench software for fault monitoring and tuning.

9. SAFETY NOTES

• Disconnect power before installation/maintenance; motor remains live briefly after stop.

• Ground motor housing properly to avoid electric shock.

• Do not exceed max speed (8,000 rpm) or stall torque (0.84 Nm); risk of damage/injury.

• Brake is for holding only; do not use for dynamic stopping.

• For vertical axes, add external mechanical brake for functional safety.
