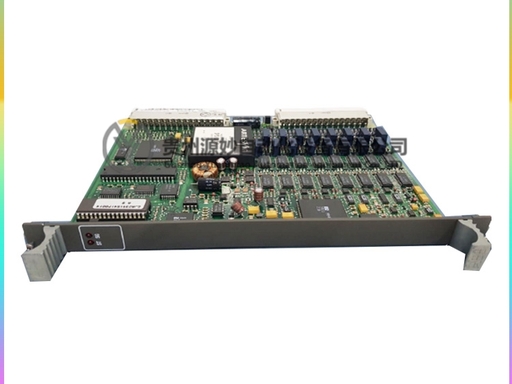

ABB 3BHE042393R0101 / UNS0122A‑P Full Model Number: 3BHE042393R0101 (Part Number: UNS0122A‑P) Brand / Origin: ABB / Sweden Type: UNITROL 1000 Series Excitation System I/O Interface Board (Digital Input and Output Module), designed for use with UNITROL 1010/1020 excitation controllers. ## I. Basic Parameters Power Supply: 24V DC (±10%), Power Consumption ≤15W Operating Temperature: ‑25℃ ~ +60℃ Storage Temperature: ‑40℃ ~ +85℃ Humidity: 5%～95% RH (Non-condensing) Dimensions: Approx. 300 × 160 × 25 mm Weight: Approx. 0.5 kg Protection Grade: IP20 Certifications: CE, UL, DNV ## II. Core I/O Specifications Digital Input (DI): 16 channels, 24V DC active type, optically isolated Digital Output (DO): 12 channels, relay contact, 250V AC / 5A or 30V DC / 5A Signal Isolation: Full-channel electrical isolation (≥1500V AC), EMI interference resistance Wiring: Detachable European terminal blocks for convenient on-site wiring and maintenance ## III. Communication & Interfaces On-board Bus: High-speed parallel communication with UNITROL 1010/1020 main control board External Expansion: RS‑485 supported, compatible with Modbus RTU network Status Indication: LED indicators for power, operation, fault and channel status ## IV. Main Functions Signal Acquisition: Collect on-site switching signals (such as circuit breaker position, disconnector, excitation switch and protection contacts) Control Output: Drive relays, contactors, indicator lights, alarm horns and other equipment System Interlocking: Realize electrical interlocking between excitation system, generator, grid connection switch and protection system Fault Diagnosis: Channel short circuit/open circuit detection, relay status monitoring and communication fault alarm ## V. Typical Applications Matched with ABB UNITROL 1010/1020 Excitation Controller (3BHE035301R1002 / UNS0121A‑Z V1) Switching signal expansion for synchronous generator excitation systems (thermal power, hydropower and diesel generators) Power generation control systems for industrial power stations, cogeneration plants, marine and offshore platforms
