I. Model Interpretation

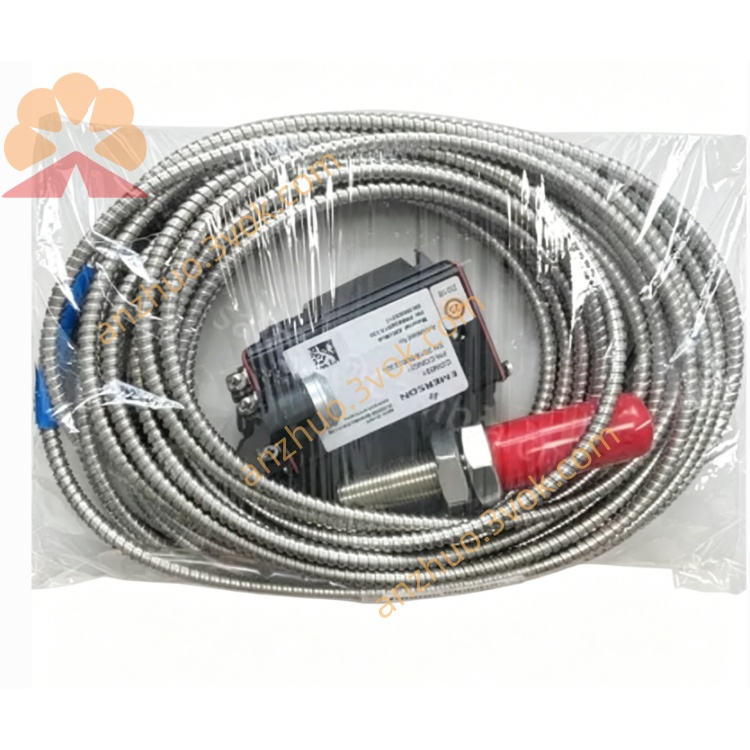

PR6423: Φ8mm Standard Eddy Current Sensor Series

010: 10-meter Armored Cable

000: Standard sensitivity and standard linearity without special calibration

-CN: China Adapted Version (Chinese nameplate/manual, domestic warranty, same parameters as the original version)

CON021: Matching Preamplifier, compatible with all probes of the PR6423 series

II. Parameters of PR6423/010-000-CN probe

Probe diameter: 8mm, M10×1 threaded installation

Cable: 10-meter double-layer shielded armored, with tensile and interference resistance

Linear range: Static ±1.0mm; Dynamic 0-500μm

Sensitivity: 8V/mm (with CON021)

Standard installation air gap: 1.5mm (midpoint corresponds to -12V)

Frequency response: 0-12kHz

Coil resistance: 4-6Ω; Insulation resistance: >100MΩ

Operating temperature: Probe -35℃ to +180℃ (short-term + 200℃), Cable -30℃ to +100℃

Protection: IP67; Compatible materials: 42CrMo4 and other ferromagnetic steel, shaft diameter ≥ 25mm

III. Parameters of CON021 preamplifier

Power supply: -24VDC (-18 to -30VDC)

Static output: -4V to -20V; Midpoint 1.5mm corresponds to -12V

Power consumption: ≤2W; Frequency response: 0-10kHz

Protection: Reverse connection, short circuit, open circuit protection

Installation: Inside control cabinet, IP20

IV. Wiring and Installation Tips

CON021 terminals:

-24V; 2) 0V; 3) Signal output; 4) Signal ground

Probe → Preamplifier: LEMO aviation plug direct insertion and locking

Shielding: Single-point grounding on the cabinet side, probe end shield floating

Installation gap: Initial 1.5mm, lock after adjusting to output -12V

V. Voltage Status Judgment (-24VDC power supply)

Insufficient gap: ≈-4V

Standard point: 1.5mm → -12V

Excessive gap: ≈-20V

No voltage / Close to 0V: Open circuit, loose connection, reverse power supply

VI. Application and Compatibility

Purpose: Turbine, compressor, fan shaft vibration / shaft displacement / phase synchronization monitoring

Compatibility: EPRO MMS6000, AMS6500, etc. TSI systems

-CN Version advantages: Chinese documentation, domestic warehouse ready stock, 18-month warranty

VII. Quick Comparison with Other Models Table

Model Cable Version Applicable Scenarios

PR6423/010-000 10 meters Original standard Overseas / Imported projects

PR6423/010-000-CN 10 meters Chinese adaptation Internal TSI projects, Chinese language + Long-term warranty

PR6423/003-030-CN 5 meters Chinese adaptation Short distance, standard sensitivity requirements
