PFSK130 (3BSE002616R1) Product Introduction

I. Core Parameters

• Brand & Model: ABB PFSK130

• Order Number: 3BSE002616R1

• Product Type: Channel Control Unit / Communication Processor

• Applicable System: ABB Advant OCS / Master / 800xA DCS System

• Weight: Approx. 0.6 kg

• Structure: Standard 6U Eurocard, with metal front panel and red ejector handle

• Function Positioning: System bus control, inter-node communication, I/O data scheduling, real-time signal processing

II. Main Functions

System Communication Hub

• Manages communication of the internal bus of the control system (e.g. ModuleBus)

• Handles data exchange between the main control unit, various I/O sub-modules and field devices

• Supports conversion of multiple industrial bus protocols

Channel Control & Scheduling

• Performs centralized acquisition, conversion and distribution of multi-channel I/O signals

• Enables high-speed real-time data transmission to ensure the response speed of system control

System Monitoring & Diagnosis

• Monitors the status and communication quality of each channel

• Features self-diagnosis, status indication and alarm functions

Industrial-Grade Stability

• High anti-interference capability, adapting to complex industrial environments such as power plants, chemical industry and metallurgy

• Supports long-term uninterrupted operation

III. Appearance Features

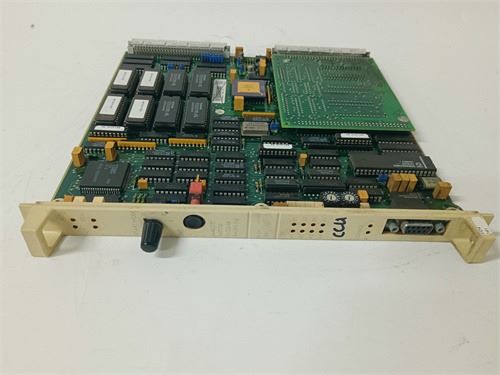

• Front Panel: Beige metal panel with status indicators, communication interfaces (serial port / Ethernet) and label

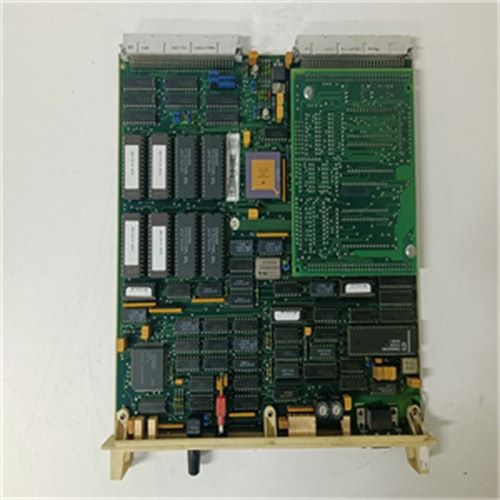

• Circuit Board: Green multi-layer PCB integrated with processor, memory, bus controller and logic chips

• Interface: European-style connector (PIG Western) at the rear for insertion into the cabinet backplane

• Installation: Standard 6U rack mounting, hot-swappable (for some versions)

IV. Typical Applications

• Power: Generator unit control, substation automation

• Petrochemical: Process control, material handling, safety interlocking

• Metallurgy / Manufacturing: Production line automation, equipment linkage control

• Water Treatment: Pump and valve control, water quality monitoring system
