PFSK151 (3BSE018876R1) is a control connection module in ABB automation systems, featuring both digital signal processing and I/O expansion capabilities, used for inter-device communication and signal conditioning.

Core Information Overview

Table

Item Content

Brand ABB

Model PFSK151

Order Number 3BSE018876R1 (alternative: 3BSC980006R358)

Product Type Control Connection Module / Digital Signal Processing Board

Core Positioning Bridge for system communication and I/O expansion

I/O Configuration 8 channels DI, 6 channels DO, expandable up to 142 points

Communication Interfaces RS-485, RJ45 Ethernet; supports Modbus/TCP/IP

Power Supply Main supply: 5V DC (±10%, 200mA); 2 channels of 24V DC auxiliary output (5A/1.3A)

Operating Temperature 0℃ ～ +60℃

Storage Temperature -40℃ ～ +85℃

Protection / Installation IP20, 35mm DIN rail mounting

Certifications CE, UL

Weight Approx. 0.5kg

Main Functions and Features

Multi-protocol Communication: Supports RS-485, Ethernet, and is compatible with Modbus/TCP/IP, suitable for PLC/DCS interconnection.

I/O Expansion Capability: Basic 8DI/6DO, expandable to 142 points to meet access requirements for complex field signals.

Signal Conditioning and Protection: Performs signal conversion and preprocessing, with built-in self-diagnosis to improve system reliability.

Industrial-grade Reliability: Resistant to EMC interference, adapting to harsh working conditions in power, manufacturing, chemical and other industries.

Application Scenarios

Suitable for use in ABB automation systems as a connection hub for sensors, actuators and controllers, for data acquisition, remote monitoring and control, commonly found in power plants, petrochemical, water treatment and other scenarios.

Appearance and Installation

Appearance: Compact PCB board with communication terminals and I/O interfaces, facilitating cabinet wiring.

Installation: Standard 35mm DIN rail, plug-in structure for easy maintenance.

Shall I supplement its terminal definitions, wiring diagrams or official manual links?

Find relevant pictures

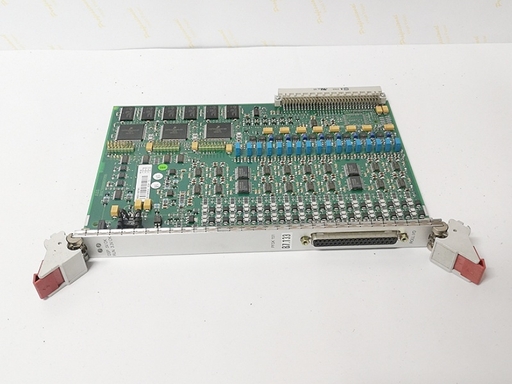

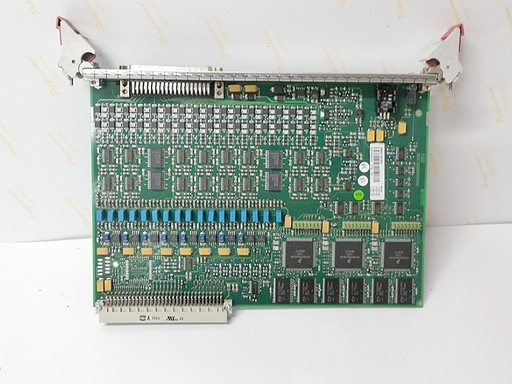

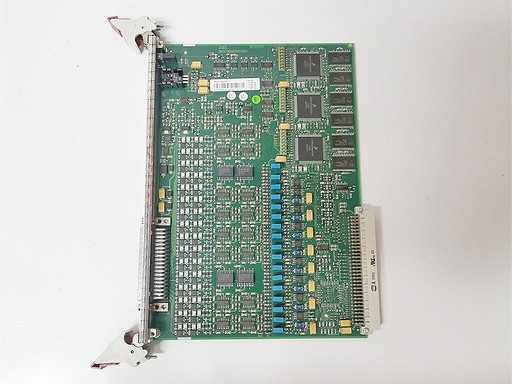

PFSK151 (3BSE018876R1) is a signal processing/control board for ABB's DCS systems, featuring a standard 6U Eurocard structure.

Appearance Features

Structure: Standard PCB board with a metal front panel and a red extraction handle, designed for cabinet slot installation.

Panel: Silver metal material, with a PIG Western connector (signal interface) on the right side.

Circuit Board: Green substrate equipped with chips, blue potentiometers, relays and wiring terminals.

Label: A model label is affixed to the front, marked with PFSK151 and 3BSE018876R1
